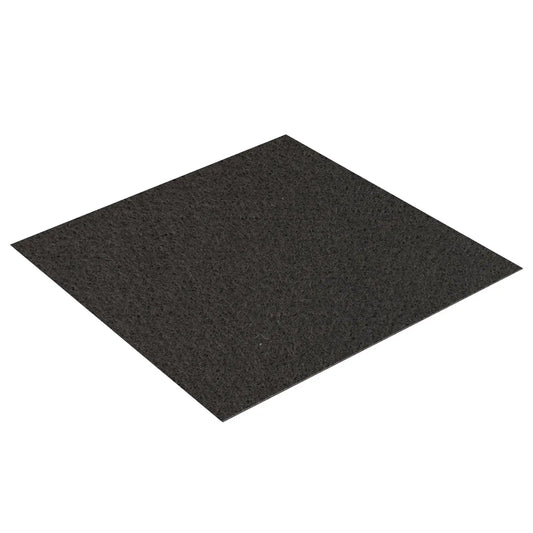

Material & Applications: made from high-purity carbon fiber, offering excellent electrical conductivity and long-term stability, suitable for laboratory flow batteries and related electrochemical applications
Size Options: product size is 10 x 10 cm, available in two thickness options: 2.8 mm and 4.7 mm (at 1.7 kPa), designed to balance structural integrity and assembly adaptability
Compression Performance: under 43 kPa compression, the material maintains stable structural performance with reduced thickness, supporting reliable operation in electrochemical systems
Electrical Performance: through-plane resistance is below 130 mΩ·cm² (at 43 kPa), helping to reduce internal resistance and improve electrochemical reaction efficiency
Surface Treatment: after activation and pre-oxidation treatment, the material surface exhibits good hydrophilicity, making it suitable for electrochemical systems where the electrolyte is fully infiltrated

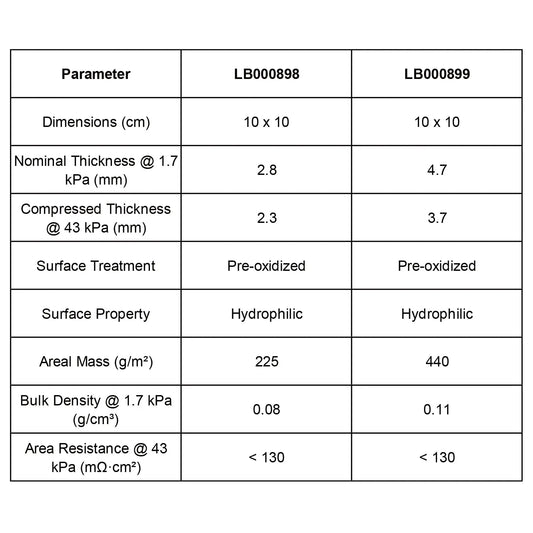

Nominal Thickness (1.7 kPa)	2.8 mm	4.7 mm
Product Size	10 x 10 cm	10 x 10 cm
Compressed Thickness (43 kPa)	2.3 mm	3.7 mm
Mass per Unit Area	225 g/m²	440 g/m²
Bulk Density (1.7 kPa)	0.08 g/cm³	0.11 g/cm³
Through-plane Resistance (43 kPa)	< 130 mΩ·cm²	< 130 mΩ·cm²
